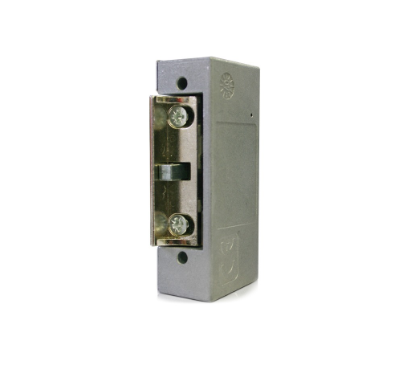

Delayed Action lock releases
CV-24 lock releases - enable the door to be opened with only one press of the lock release push button on the apartment unit. The door is locked again once opened and then closed.
- View/ Download
Casing manufactured in 2mm. thick pressure injected light alloy, with a standard height of 90mm.Adjustable bolt on all models, allowing 3 mm. precision. Operation voltage from 8 to;12V a.c.;(750mA consumption).;;
Options are available:;
Standard mechanism: 90 x 20mm
Reduced size mechanism: 76 x 20;
Medium size shield: 159 x 25mm
Long size shield: 249 x 25mm;
Mechanical unlock function;
Operating voltage: AC or DC;
