Kit for integration of BIO-N reader on Nexa aluminium panel.
Includes the following items: 1 x BIO-N reader.1 x Special N3000 adapter module.
- 125KHz waterproof proximity and fingerprint reader with Wiegand 26 technology
- For IP OPENER Wiegand controllers or stand-alone operation
- Capacity for up to 100 users per fingerprint and 900 per card
- Capacitive fingerprint sensor
- Admits PROKEY ID and TAGKEY ID cards and fobs
- Three contact output relay (C, NO and NC)
- IP66 protection
- In stand-alone mode requires 12Vdc power supply.
;

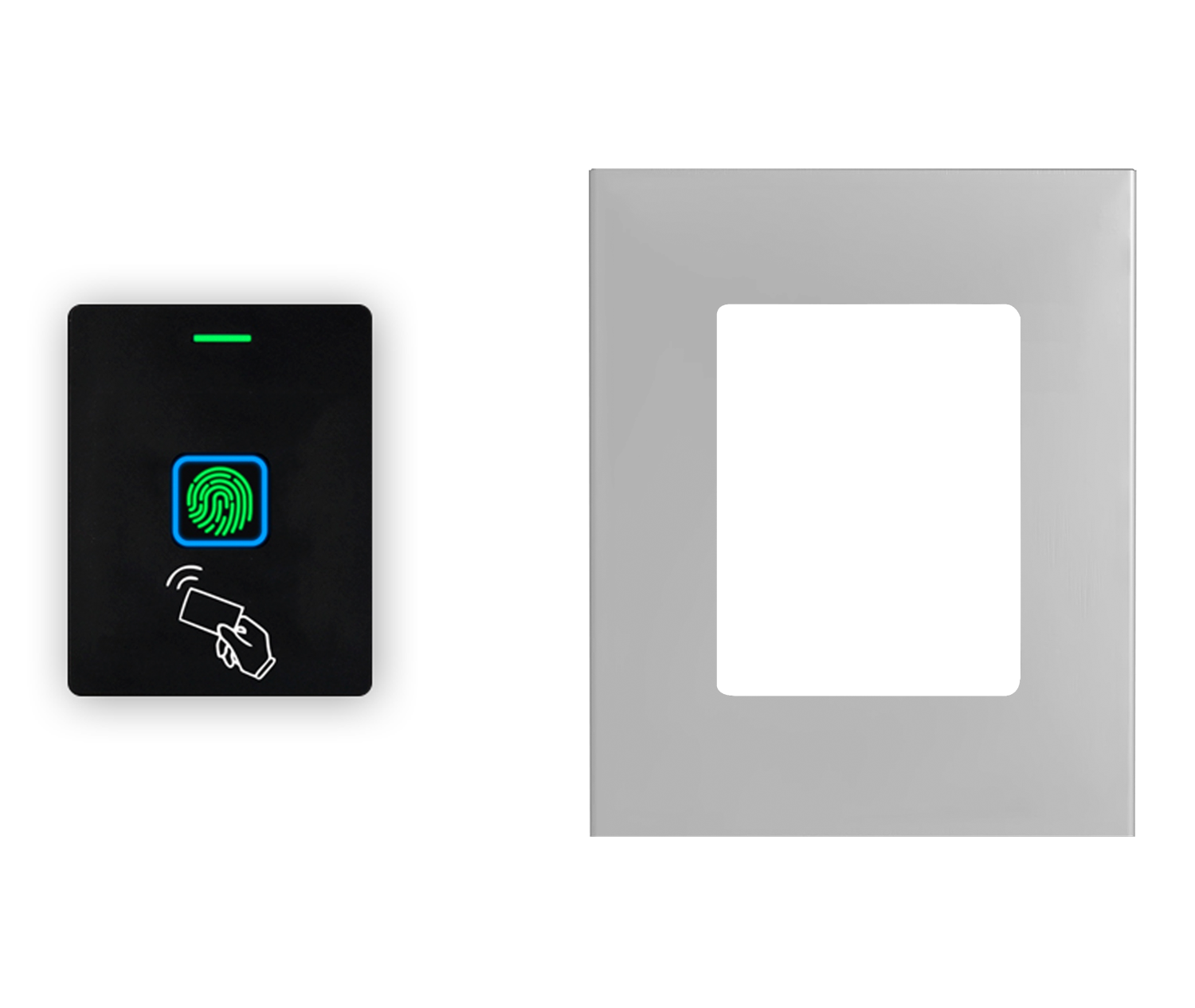

N3000/Bio-N - fingerprint and proximity module
- Module for incorporating Bio-N reader into Nexa panels ;
;Material Aluminium and black ABS plastic Protection rating IP66 Input voltage 12/18Vdc Current Standby: <30mA Active: <120mA Capacity 989 users ( 890 cards and 99 fingerprints); Fingerprint reader Resolution: 500DPI Id time: < 1s FAR: < 0.01% FRR: <0.1% Reading frequency; ;; EM125 KHz Reading range 0-6cm Relay NO, NC, common 2A max. Transmission format Wiegand 26 Dimensions Electronics: 48 x 62 x 25mm Working temp range -25 ~60 degrees Celcius Working humidity 0- 98% (non-condensing);
