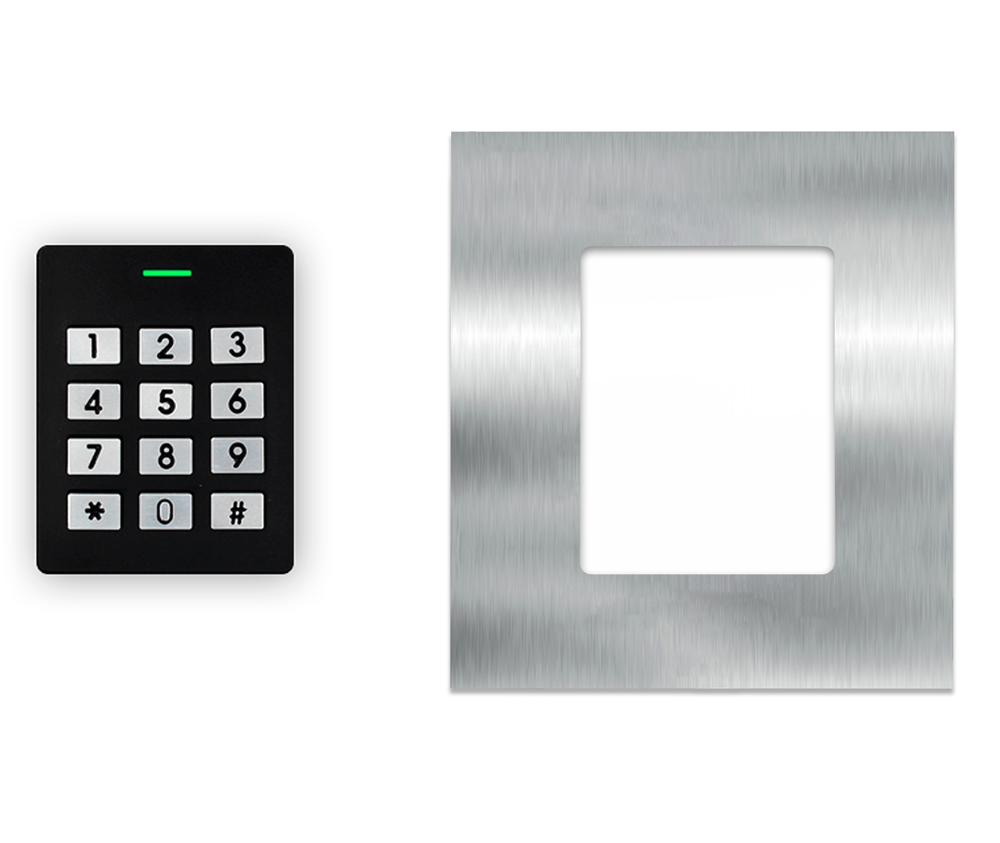

NX3000/CodeProx - keypad and proximity module
Kit for integration of CODEPROX-N reader on Nexa stainless steel panel.Includes the following items:1 x CODEPROX-N reader.1 x Special NX3000 adapter module.
  • 125KHz waterproof proximity and keypad reader with Wiegand 26 technology
  • For IP OPENER Wiegand controllers or stand-alone operation
  • Capacity for up to 1000 users
  • Admits PROKEY ID and TAGKEY ID cards and fobs
  • Three contact output relay (C, NO and NC)
  • IP66 protection
  • In stand-alone mode requires 12Vdc power supply.

NX3000/CodeProx - keypad and proximity module

  • Material Stainless steel and black ABS plastic
    Protection rating IP66
    Input voltage 12/18Vdc
    Current Standby: <30mA Active: <120mA
    Capacity 990 users;
    Keypad; ; 12 keys ;
    Reading frequency; ;; EM125 KHz
    Reading range 0-6cm
    Relay NO, NC, common 2A max.
    Transmission format Wiegand 26
    Dimensions; W x H x D mm Electronics: 48 x 62 x 25mm Electronics + cover: 86 x 86 x 25mm
    Working temp range -40 ~60 degrees Celcius
    Working humidity 10- 98% (non-condensing);
