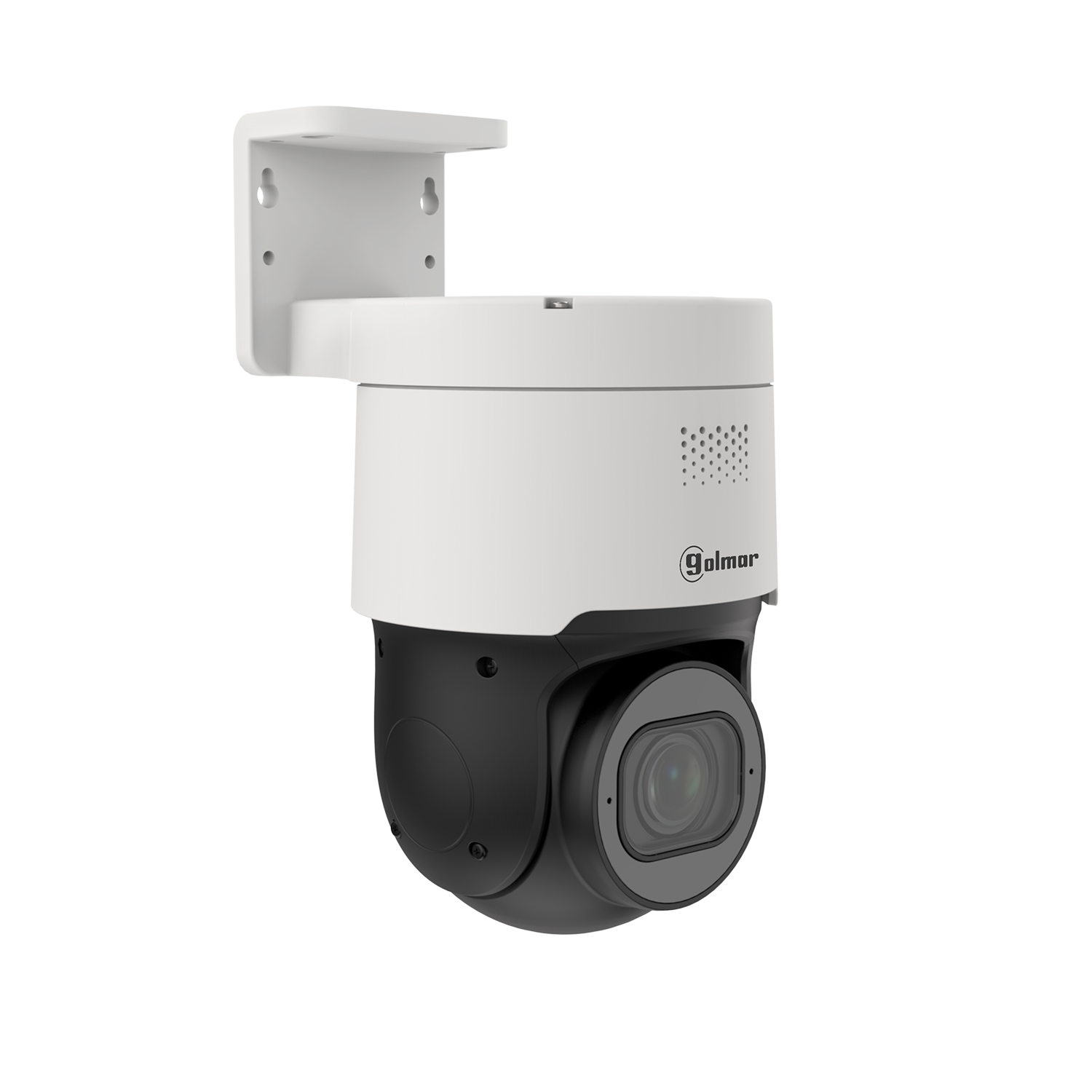

PTZ-04X8IPT 8Mpx (4K) camera with motorized lens and autotracking
SKU: PTZ-04X48IPT

PTZ-04X8IPT 8Mpx (4K) camera with motorized lens and autotracking

PTZ-04X8IPT 8Mpx (4K) camera with motorized lens and auto tracking

  • PTZ dome with IP technology
  • 8MPx resolution
  • 4x optical zoom
  • ONVIF compatibility (Profile S, G, T)
  • Wall or ceiling mountable
  • Built-in microphone and speaker
  • Video analysis functions

  • Dimensions: 115 (H) x 238 (W) x 165 (D) mm


    Weight: 920gr

    User manual






  • Specifications
    Type PTZ
    Technology IP
    Image sensor 1/2.7" Progressive Scan CMOS
    Max. Resolution 8Mpx
    Images by sec. (FPS) 25
    Colour White
    Mounting Wall,Ceiling
    Lense Motorized
    Focal length 2,8 - 12 mm
    Zoom (x) 4
    Max. Aperture ratio F1.6
    Horizontal field of view (º) 113(W) - 31,4(T)°
    Vertical field of view (º) 54,8(W) - 17,6(T)°
    Minimum illumination (lux) Color: 0.009 Lux @ (F1.6, AGC ON)
    Night vision mode Day/Night
    IR distance max. (m) 30
    Pan range 0°,350°
    Pan speed 0.6° - 54°/s
    Tilt range 0-90º
    Tilt speed 0.6° - 54°/s
    Presets 255
    Autotracking Yes
    WDR No
    Additional functions AWB,BLC,AES,DNR,3D-DNR,D-WDR
    Bitrate 8 kbps - 16384Kbps
    Main Stream (FPS) 25 fps @ 3840x2160, 3072x1728, 2592x1944, 2592x1520, 2304,1296, 1920x1080, 1280x960, 1280x720
    Sub Stream (FPS) 25 fps @ 1280x720, 640 × 480, 320x240
    Video compression H.264,H.265
    Audio compression G.711a / G.711u
    Video Analysis LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM
    Internal storage Yes (max 256Gb)
    Network interface RJ45
    I / O alarms No, deterrence leds (red & blue)
    I / O audio No
    Built-in microphone Yes
    Built-in speaker Yes
    Integrated WiFi No
    Remote Access / App Web,App GolmarView,VMS Pro
    Protocols IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, TCP/IP, UDP, DHCP, PPPoE
    Degree of protection (IP) 66
    Material Plastic
    Maximum working temperature (ºC) 60
    Minimum working temperature (ºC) -30
    Relative humidity work (max.) 90%
    Input voltage (V) 12Vcc,PoE
    Included power supply No
    Max. consumption (W) 13
    Dimensions - High (mm) 238
    Dimensions - Diameter (mm) 166
    Weight (gr.) 920
    Certifications
