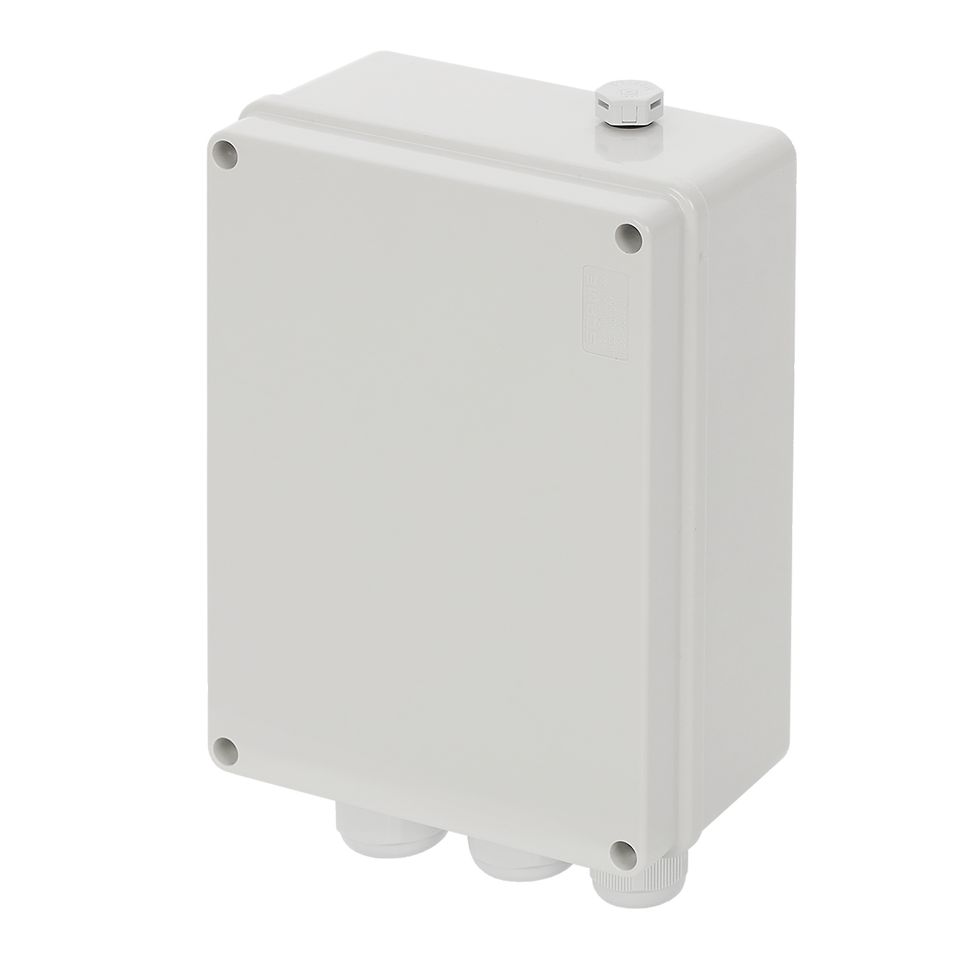

SW-104E 4-Port outdoor PoE switch
SW-104E 4-Port outdoor PoE switch

  • 4 x 10/100Mb/s PoE ports
  • IEEE 802.3af/at standard
  • 2 x 10/100Mb/s Uplink ports
  • Long distance mode up to 200m
  • 3 cable glands
  • IP56 protection rating
  • ABS plastic material
  • Operating temperature: -25°C to 50°C (-25°F to 122°F)




SW-104E 4-Port outdoor PoE switch

  • Operating temperature: -25°C to 50°C (-25°F to 122°F)


    Dimensions 146 (W) x 196 (H) x 78 (D) mm

  • Specifications
    Network interface RJ45
    POE ports 4
    Uplink ports 2
    SFP ports 0
    Tube inputs 3
    Flanges No
    Compatibility IEEE 802.3af/at
    Supported modes Extended PoE
    Electrical protection Short circuit,Overvoltage,Overload
    Dimensions - High (mm) 196
    Dimensions - Width (mm) 146
    Dimensions - Deep (mm) 78
    Input voltage (V) 230Vca
    Included power supply Yes
