Nexa audio door phone kit with 2-wire technology.
These audio kits use the Nexa modular panels and the G2+ T-520 2 wire handset.
System technology supports up to 4 panels using the DPM-G2+
For 1 way , 2 wire audio kit with T-520 handset see S4110/T520
To add a rain shield select as appropriate:
1 module box for 1 and 2 way kits. N711/AL
2 module box for 4,6,8,10, 12 way pack. N721/AL
3 module box for 14, 16, 18, 20, 22 way packs. N731/AL
For surface mounting add appropriate surface mount housing.
1 module box for 1 and 2 way kits. N871/AL
2 module box for 4,6,8,10, 12 way pack. N872/AL
3 module box for 14, 16, 18, 20, 22 way packs. N873/AL

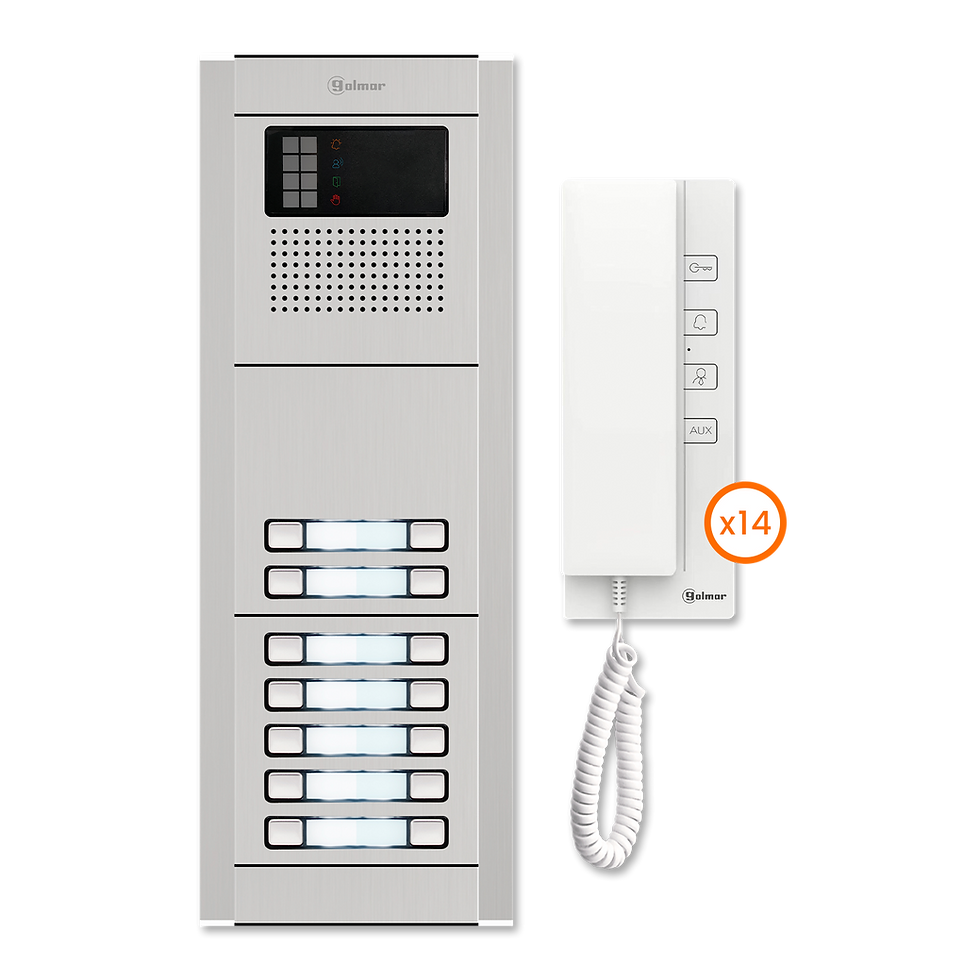

NEXA. G2+ 2 wire Audio kits
T-520 G2+ handset
- Casing manufactured in ABS RAL9003 white colour.
- Detachable telephone cord with connectors.
- Privacy on audio and door open progresses.
- Input for door bell apartment push button.
- Different call reception tones depending where the call is coming from.
- Two positions call volume regulator with on-off function.
- Possibility to automatically activate the lock when a call is received.
- Additional push button can be used to activate a second lock connected to the door panel, to intercom within the same apartment and to activate the staircase lights when using a SAR-GB2 digital relay unit.
- Output for activation of a SAR-12/24 relay unit during call reception.
Dimensions: 85(W) x 221(H) x 56(D) mm.
